Titanium flanges, as an indispensable connecting element in piping systems, provide reliable connection solutions for various industrial applications with their unique materials and excellent performance. In this article, the definition, structure, manufacturing methods, applications, and advantages of titanium flanges will be introduced in detail.
Definition and structure

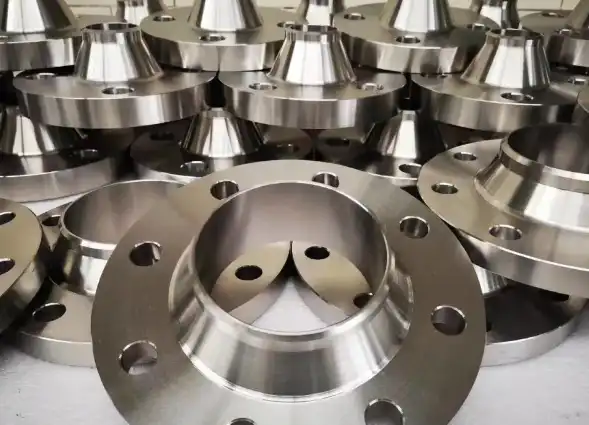

Titanium flanges are made of titanium or its alloys and are components used to connect two or more tubes at the end. It possesses excellent strength-to-weight ratio, corrosion resistance, non-magnetic and biocompatibility, and stability at high temperatures. Titanium flanges have through holes in the center of the disc-like structure matching the inner diameter of the tube, and the surface is distributed with a specific number, size, and arrangement of eyelets for mounting bolts or double-ended studs to achieve a tight fixation between the flanges.
Manufacturing methods and connection forms
Titanium flanges are manufactured by various methods, including the precision casting process, which is suitable for complex internal structures or special performance requirements. Connection form, in addition to the traditional bolt connection, also includes threaded connection and welding connection. Threaded connections are suitable for small or application-specific flanges, which can be threaded directly to pipes or other components. Welded connections, on the other hand, are particularly suitable for applications requiring extremely high sealing and structural strength, such as pressure vessels, chemical equipment, or aerospace applications.
Applications and Advantages
Titanium flanges are widely used in piping systems in chemical processing, petroleum refining, ocean engineering, electric power, pharmaceuticals, food processing, and other industries, and are particularly suitable for handling highly corrosive media. Its corrosion resistance, light weight, biocompatibility, and high-temperature performance make it a leader in high-performance pipeline connection parts.
1. corrosion resistance: the high corrosion resistance of titanium flanges enables them to maintain long-term structural integrity and sealing reliability in harsh environments, significantly reducing maintenance costs and extending equipment life.
2. Lightweight: Compared with traditional stainless steel or carbon steel flanges, titanium flanges have a lower mass, which is valuable for high-end applications that require weight reduction.
3. Biomedical field: Titanium's biocompatibility makes it favoured in the manufacture of medical devices, and can be used to construct piping connections for implanted medical devices or laboratory equipment.
4. High-temperature performance: titanium alloy can still maintain good mechanical properties and creep resistance under high-temperature environments, suitable for high-temperature and high-pressure working conditions.
Specification parameters and testing
The specification parameters of titanium flanges include nominal diameter, pressure level, flange type, connection form, applicable standards, and material grade. To ensure that it meets the relevant standards and use requirements, the testing of titanium flanges may cover the analysis of material composition, dimensional inspection, non-destructive testing, mechanical performance testing, sealing performance test, and surface quality assessment.
All in all, titanium flanges are indispensable high-performance pipelines connecting parts in modern industrial fields due to their unique materials and excellent performance, which provide reliable connection solutions for a variety of harsh environments and demanding applications.
