Astm B363 Gr5 Titanium Elbow
Specification: ASTM B363 /ASME S B363
Type: Seamless/welded
Available sizes：DN15-DN600(NPS 1/2”-24”)
Pressure Ratings: 150#, 300#, 600#, 900#, 1500#, 2500#
Common Grades: WPT1, WPT 2, WPT 3, WPT 7, WPT 9, WPT12, WPT 23
Two Factories & 30 titanium metal production lines
21 years of experience in titanium metal manufacturing
Systerm quality with ISO / SGS / TUV quality control.
Delivery term: DHL, FEDEX, Air freight,Sea freight
Annual production: 800 tons
ASTM B363 GR5 Titanium Elbow Introduction
The specification ASTM B363 covers unalloyed ASTM B363 GR5 Titanium Elbow and titanium alloys fittings intended for general corrosion-resisting and elevated-temperature services. The term welding fittings applies to butt-welding parts such as 45°and 90° elbows, 180°returns, caps, tees, reducers, lap-joint stub ends, and other types. Linhui is a leading supplier of titanium and corrosion-resistant metals. Our main products cover titanium, nickel, zirconium materials, products, equipment, and composite materials, which are widely used in chemical, petroleum, power plants, water treatment, shipbuilding, pharmaceutical, medical and other industries.
Specifications
Below is a detailed table outlining the specifications for our ASTM B363 GR5 Titanium Elbow:
| Specification | Description |
|---|---|
| Standard | ASTM B363 / ASME SB363 |
| Type | Seamless/Welded |
| Available Sizes | DN15-DN600 (NPS 1/2”-24”) |
| Pressure Ratings | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Common Grades | WPT1, WPT2, WPT3, WPT7, WPT9, WPT12, WPT23 |

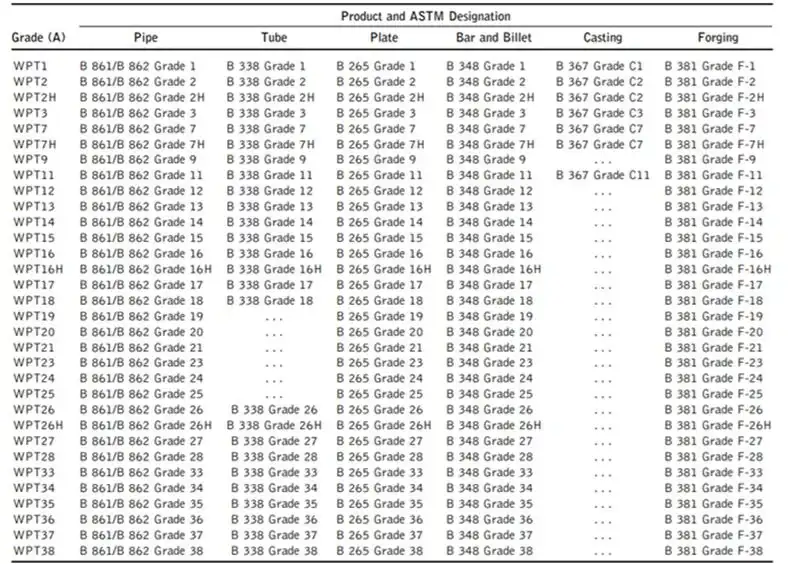

Permissible raw material
Why Choose Us as Your Supplier?
Our Advantages:
- Extensive Experience: With 21 years of expertise in titanium manufacturing, we consistently deliver premium products tailored to client needs.
- Advanced Logistics Packaging: Ensuring your products arrive in pristine condition, we use customized packaging for maximum protection.
- High-Quality Products: Our titanium elbows undergo rigorous quality control checks, ensuring compliance with global standards.
- Reliable Service Team: Dedicated professionals provide unmatched support from product inquiry to after-sales assistance.
Testing equipment
Our company is equipped with a series of advanced titanium product testing equipment, which is a strong guarantee of our testing strength. From high-precision optical microscopes and electron microscopes, which can meticulously detect the appearance and microstructure of titanium products, to precise spectrometers and X-ray fluorescence analyzers, which can quickly and accurately determine the chemical composition of titanium products. There are also mechanical property testing instruments such as universal material testing machines and hardness testers to ensure that titanium products meet standards in terms of strength, hardness, etc. These first-class testing equipment fully demonstrates our professional strength in the field of titanium product testing, ensuring that the quality of each product is impeccable.
Production Process
Our production process for ASTM B363 GR5 Titanium Elbows involves stringent quality controls and innovative techniques. Key steps include:
- Material Sourcing: Premium titanium is selected and tested for purity and compliance with specifications.
- Forming and Shaping: Precision manufacturing techniques shape the titanium elbows to exacting tolerances.
- Quality Testing: Each elbow undergoes non-destructive testing to ensure integrity and performance.
- Finishing and Packaging: Products are thoroughly inspected, packaged, and prepared for shipment to meet client requirements.
Product Advantages and Characteristics
- Exceptional Corrosion Resistance: Withstand exposure to harsh chemicals, saltwater, and extreme temperatures.
- Superior Strength-to-Weight Ratio: Ideal for aerospace, automotive, and other demanding applications where weight savings are crucial.
- Versatility in Design: Available in multiple sizes and pressure ratings to meet diverse application needs.
- Long-Term Durability: Titanium's innate resistance to wear and stress ensures prolonged operational life.
Application Areas
Our ASTM B363 GR5 Titanium Elbows are widely used across diverse sectors, including:
- Aerospace and Defense: Aircraft and military equipment requiring lightweight, high-strength components.
- Marine and Offshore: Resistant to saltwater corrosion, ideal for ships and offshore installations.
- Chemical and Petrochemical: Withstands aggressive chemicals and high temperatures for critical systems.
- Energy (Oil & Gas, Power Generation): Reliable for high-pressure pipelines and reactors.
- Medical Equipment: Used in sterile environments due to its biocompatibility.
- Automotive (High-Performance): Lightweight performance components for racing and high-speed applications.

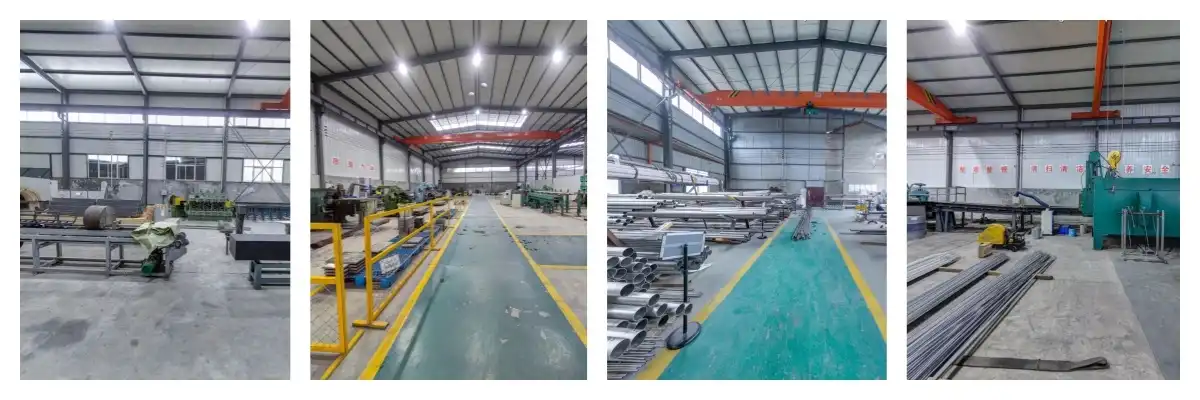

Our Factory
Linhui operates a modern facility that maintains a leading edge in the titanium industry. With a strong focus on high-quality, high-performance products, we serve clients worldwide with unparalleled reliability and precision.
Certification
We hold numerous certifications to assure our customers of product safety and compliance:
- Manufacturing License of Special Equipment of China
- TUV Nord AD2000-W0 Certification
- PED 2014/68/EU Certification
- ISO 9001:2015 QMS Certificate
- Approved by third-party agencies such as DNV, BV, SGS, Moody's, TUV, ABS, LR, and more.
Frequently Asked Questions
Q1: What sizes of ASTM B363 GR5 Titanium Elbows are available?
A1: Our elbows range from DN15 to DN600 (NPS 1/2”-24”).
Q2: Can you provide custom sizes or specifications?
A2: Yes, we offer customized solutions to meet specific project needs.
Q3: What is the typical delivery time?
A3: Delivery times vary based on order size and specifications, but we offer expedited options via DHL, FEDEX, air freight, and sea freight.
Contact Us
For inquiries or additional information, please reach out to us at linhui@lhtitanium.com. Our team is ready to assist you with tailored solutions for your Astm B363 Gr5 Titanium Elbow needs.
