Titanium stub ends
Specifications: Customizable
Structure: Titanium flange
Granularity: 149～420μm
Titanium content: 99.95%
Color: Pure titanium color Gray
Product surface: Smooth
Titanium stub ends are generally used with stainless steel or carbon steel flanges to reduce the use of this form of flanges with the flanges are also called live flanges (PJ/SE), or called live flanges, loose flanges. It is also called titanium butt weld ring, the use of methods: Titanium stub ends through the stainless steel flange, and pipe (titanium pipe road) welding, two welded titanium flap butt, stainless steel flange to do fastening. In contact with the medium in the pipeline is the titanium material, that is, the original titanium pipe pipeline and titanium flap, and stainless steel flange part of the medium is not in contact with, only to play the effect of fastening, so do the reduction of the
Titanium stub ends with the use of PJ/SE-loose flange, live flange disadvantages: this pipeline connection should not be used in the pipeline pressure is too high in the environment, suitable for atmospheric pressure pipeline environment.
Precautions: Titanium flange welding can only be welded with titanium pipe, the use of argon arc welding, the use of wire material and titanium wire similar material, not directly with stainless steel pipe or other materials pipeline welding. Cannot be used in the pipeline environment with high pressure.
Product Information
| Product name | Titanium stub ends |
| Specifications | Customizable |
| Structure | Titanium flange |
| Granularity | 149～420μm |
| Titanium content | 99.95% |
| Color | Pure titanium color Gray |
| Product surface | Smooth |
| Features | Lightweight High strength Corrosion resistance |
| Thermal conductivity | 16.3~18W/（m•℃） |
| Process | Cutting EDM |
| Melting point | Up to 1668℃ |
| Physical properties | Metallic luster Ductility |
| Applications | Petroleum, chemical, electric power, metallurgy |
Four major advantages
Complete specifications: more discounts for large quantities, zero-cut customization is available

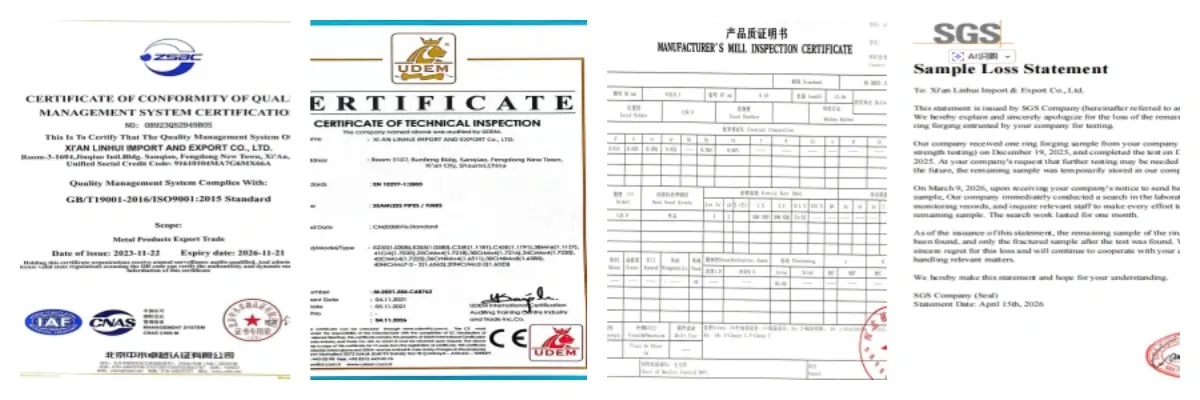

Excellent quality: material list and third-party inspection report are available
Lightning delivery: spot goods are shipped on the same day, and other goods are shipped within 3-7 days
After-sales worry-free: professional customer service provides help and support throughout the process, and refunds and exchanges are guaranteed if the Titanium stub ends quality is not up to standard
Dimensions for Titanium Stub Ends
| Nominal Size | Outside Diameter of Barrel | Long Pattern Length, F |
Short Pattern Length, F |
Radius of Fillet, R |
Diameter of Lap, G |
|
| NPS | Max. mm. in. |
Min. mm. in. |
mm. in. |
mm. in. |
mm. in. |
mm. in. |
| 1/2 | 22.8 0.896 |
20.5 0.809 |
76 3.00 |
51 2.00 |
3 0.12 |
35 1.38 |
| 3/4 | 28.1 1.106 |
25.9 1.019 |
76 3.00 |
51 2.00 |
3 0.12 |
43 1.69 |
| 1 | 35.0 1.376 |
32.6 1.284 |
102 4.00 |
51 2.00 |
3 0.12 |
51 2.00 |
| 1 1/4 | 43.6 1.716 |
41.4 1.629 |
102 4.00 |
51 2.00 |
51 2.00 |
64 2.50 |
| 1 1/2 | 49.9 1.965 |
47.5 1.869 |
102 4.00 |
51 2.00 |
6 0.25 |
73 2.88 |
| 2 | 62.4 2.456 |
59.5 2.344 |
152 6.00 |
64 2.50 |
8 0.31 |
92 3.62 |
| 2 1/2 | 75.3 2.966 |
72.2 2.844 |
152 6.00 |
64 2.50 |
8 0.31 |
105 4.12 |
| 3 | 91.3 3.596 |
88.1 3.469 |
152 6.00 |
64 2.50 |
10 0.38 |
127 5.00 |
| 3 1/2 | 104.0 4.096 |
100.8 3.969 |
152 6.00 |
76 3.00 |
10 0.38 |
140 5.50 |
| 4 | 116.7 4.593 |
113.5 4.469 |
152 6.00 |
76 3.00 |
11 0.44 |
157 6.19 |
| 5 | 144.3 5.683 |
144.3 5.683 |
203 8.00 |
76 3.00 |
11 0.44 |
186 7.31 |
| 6 | 171.3 6.743 |
167.5 6.594 |
203 8.00 |
89 3.50 |
13 0.50 |
216 8.50 |
| 8 | 222.1 8.743 |
218.3 8.594 |
203 8.00 |
102 4.00 |
13 0.50 |
270 10.62 |
| 10 | 277.2 10.913 |
272.3 10.719 |
254 10.00 |
127 5.00 |
13 0.50 |
324 12.75 |
| 12 | 328.0 12.913 |
323.1 12.719 |
254 10.00 |
152 6.00 |
13 0.50 |
381 15.00 |
| 14 | 359.9 14.170 |
354.8 13.969 |
305 12.00 |
305 12.00 |
13 0.50 |
413 16.25 |
| 16 | 411.0 16.180 |
405.6 15.969 |
305 12.00 |
152 6.00 |
13 0.50 |
470 18.50 |
| 18 | 462.0 18.190 |
456.0 17.969 |
305 12.00 |
152 6.00 |
13 0.50 |
533 21.00 |
| 20 | 514.0 20.240 |
507.0 19.969 |
305 12.00 |
152 6.00 |
13 0.50 |
584 23.00 |
| 22 | 565.0 22.240 |
558.0 21.969 |
305 12.00 |
152 6.00 |
13 0.50 |
641 25.25 |
| 24 | 616.0 24.240 |
609.0 23.969 |
305 12.00 |
152 6.00 |
13 0.50 |
692 27.25 |
